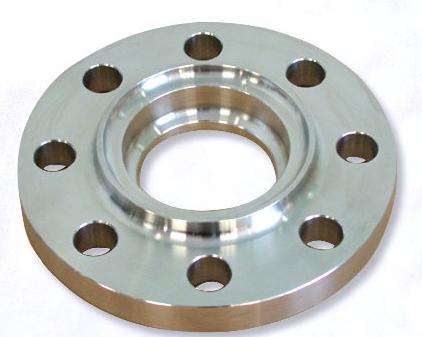

Stainless steel socket welding, a popular type of flanges is widely used for small diameter pipe under high pressure. The functions of socket welding flange are similar to slip-on flange. Both of them can be used to connect two pipes. Compared with slip-on flange, the smooth bore on socket welding flange allows better fluid flow. When being welded internally, the static strength of socket welding flange is equal to slip-on flange while the fatigue strength is higher than double welding slip-on flanges by 50%. Sometimes, socket welding flange can replace of slip-on flange, being used for pipes.
Materials
Stainless steel: ASTM A182 F304,304L, 1Cr18Ni9Ti, 0Cr18Ni9Ti
Standard: BS 4504, 4505, 3293
Parameter
Nominal diameter: DN15-400mm
Nominal pressure: PN40Bar
Flanging face: raised face (RF)
Dimensions
Flanging face | Nominal diameter | Nominal pressure |
Raised face (RF) | DN15-400mm | PN40 |
ANSI B16.9 Socket Weld Flange, CS, AS, SS, 150-2500LB
ASTM A105, A182 Sock Welded Flange, ASME B16.47, FF
ASTM A105 WCB SW Flange, TG, 1/2-24 Inch, 150LB
BS 4504 Stainless Steel Socket Welding Flange, RF, PN40
Wafer Butterfly Valve: Cast Iron,ANSI B16.10,NPS 2

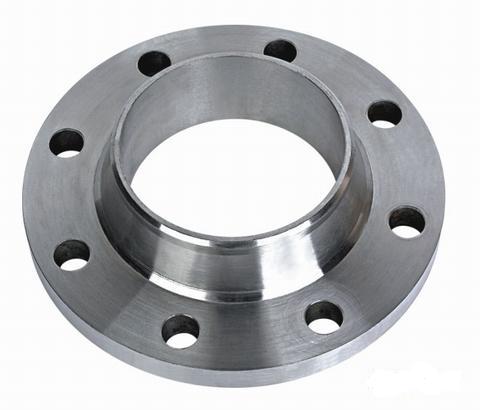

Carbon Steel Welded Neck Flanges, A105, RF, DN15-2500

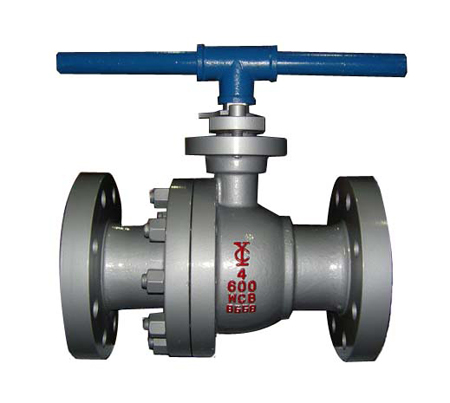

BS 5351 Trunnion Mounted Ball Valve, A216, A351, RF
