3-Piece Full Port Carbon Steel Ball Valves -Socket Weld ISO Mount

3-Piece Full Port Carbon Steel Ball Valves -Socket Weld ISO Mount
Model No.: Hits: 1955
Categories: Ball Valves
  • The three-piece full port carbon steel ball valve for use on hot/cold water and HVAC provides bubble-tight shutoff at 1000 psi,which is suitable for some chemical and utility service.The three-piece carbon steel ball valve may be used for isolation and throttling,which is equipped with locking lever handle for easy operations, socket weld end connection and cast ISO mounting pad.It is easy to install with socket weld end connection.The cast ISO mounting pad aims to actuate.

    The three-piece carbon steel ball valve that is also equipped with the reinforced PTFE seat ring and stainless steel stem provide easy operation with quarter-turn open to close,whoes stainless steel stem and PTFE seat ring show high properties of chemical resistance and is suitable for process piping.

    Valve pressure rating :1000 psi

    Max temperature rating: 400°F
    Type:Full port
    Services:some chemical and utility application;hot/cold water and HVAC

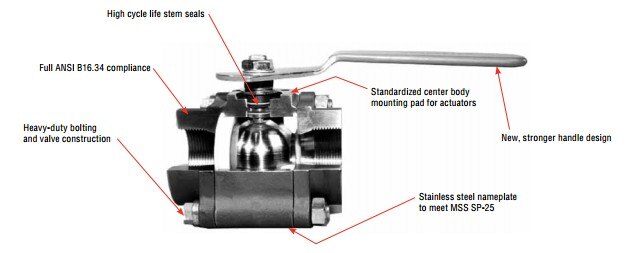

    Constructions: Locking lever handle,Socket weld end connections, cast ISO mounting pad,Stainless steel stem,high cycle life stem seals,heavy-duty bolting,full ANSI B16.34 compliance
    Standard: Conforms to MSS SP-25
    Size range: ¼" to 2"
