Cast Iron Electric Diaphragm Control Valve, API 599

Cast Iron Electric Diaphragm Control Valve, API 599
Model No.: Hits: 1437
Categories: Control Valves
Tags:
  • Cast iron electric diaphragm control valve has simple structure, low flowing resistance. Compared with other valves having the same caliber, the flowing resistance of electric diaphragm control valve is lower. The valve can adjust the medium having high viscosity or suspended particles. Based on different materials of diaphragm (rubber or PTFE), the valve is applicable for strong alkaline or strong corrosive medium. The valve is equipped with electric actuator having servo system. Only using input signal or single electric source can control the pressure, flow, temperature, level of medium without using amplifier.



    Standards

    Design: API 599

    Flanged end: AMSI B16.5

    Test & inspection: API 598



    Parameter


    Materials of Body

    Materials of Lining

    Materials of Diaphragm

    Working Temperature

    Applicable Medium

    Cast iron

    /

    Chloroprene rubber

    0~+65

    Non-corrosive medium, water, abrasive; mud

    HT20-40

    PTFE

    Fluoro rubber

    -20~+150

    Strong acid, strong alkali, strong oxidizer, organic solvent

    Stainless steel

    /

    Fluoro rubber

    -20~+200

    Acid or alkali organic solvent

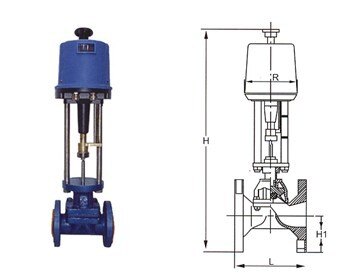

    Cast Iron Electric Diaphragm Control Valve Structure

    Dimensions

    Nominal Diameter(mm)

    H1(mm)

    L(mm)

    H(mm)

    Weight(kg)

    15

    47.5

    140

    578

    15.5

    20

    52.5

    145

    578

    16.5

    25

    57.5

    155

    578

    17.5

    32

    67.5

    165

    587

    22

    40

    72.5

    190

    602

    24

    50

    80

    210

    642

    31

    65

    90

    240

    650

    54

    80

    97.5

    270

    655

    59

    100

    107.5

    335

    737

    73
