Air Compressor Safety Valve, 2Cr13

Key Specifications / Features

Model No.: Hits: 1611
Categories: Safety Valves
Tags:

    Detail Information

    The valve whose working temperature is less than 200℃, is air compressor safety valve. When the pressure of equipment exceeds the allowed value, the valve will open automatically and release the pressure so that pressure inside can be decreased. When the pressure is decreased to the allowed valve, air compressor safety valve will close automatically so that the equipment can run effectively.


    Materials

    Part

    Materials

    Body

    2Cr13

    Base

    2Cr13

    Disc

    2Cr13

    Stem

    2Cr13

    Bonnet

    ZG230-450

    Cap

    ZG230-450


    Dimensions

    Nominal diameter DN(mm)

    Dimensions(mm)

    do

    G

    D

    D1

    z-φd

    L

    H

    20

    17

    G1”

    62

    44

    4-17

    25

    220

    25

    20

    M36×2

    70

    50

    4-20

    28

    226


    Name*
    E-mail*
    Rate*
    Comments*

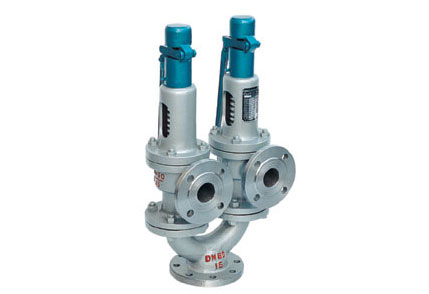

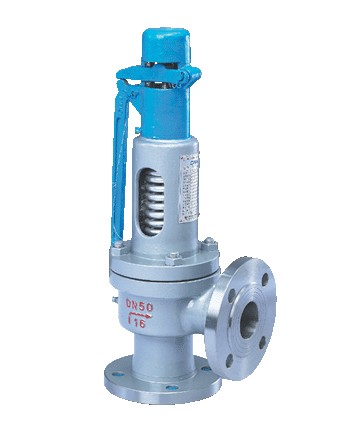

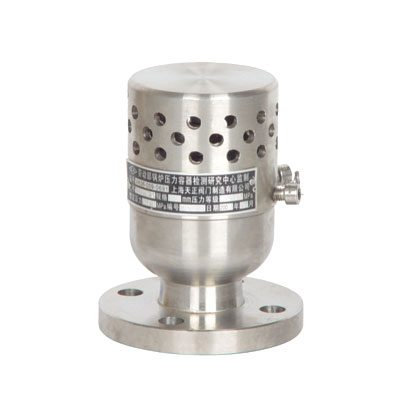

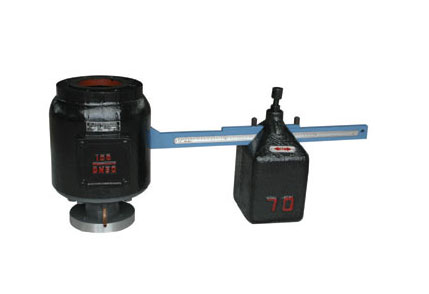

    Similar Products
