  • Electric sleeve control valve consists of electric actuator and sleeve control valve. The vale has system to receive standard single, transferring current signal into correspondent liner displacement to control opening of valve automatically. It can realize continuous control for pressure, flow, temperature, liquid level and other technological parameters inside pipes.


    Characteristics of electric sleeve control valve

    1. Adopting balanced core, allow high differential pressure, steady control.

    2. Core has large guide area to eliminate vibration caused by vortex or impact.

    3. Compared with common single or double seat control valve, the voice is decreased by 10dB.

    4. Having simple structure, convenience for maintenance.



    Materials

    Body

    WCB

    CF8

    CF8M

    CF3M

    Gasket

    PTFE/metal graphite

    Sleeve

    304

    304

    316

    316L

    Core

    304

    304

    316

    316L

    Cap

    304

    304

    316

    316L

    Bonnet

    WCB

    CF8

    CF8M

    CF3M

    Stem

    304

    304

    316

    316L

    Packing

    PTFE/flexible graphite

    Spring

    65Mn

    304

    316

    316L

    Nut

    304

    304

    316

    316L



    Parameter

    Nominal diameter: DN20-300mm

    Nominal pressure: ANSI 150Lb,250Lb,300Lb,600Lb

    Face to face: flanged end, welded end, screw end

    Working temperature: -40~350

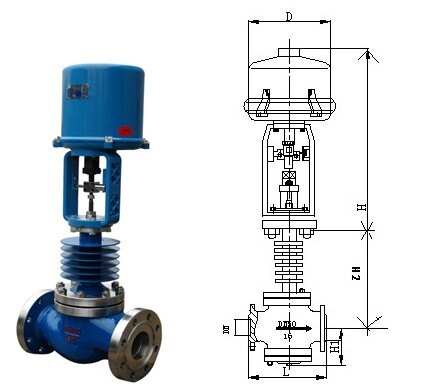

    Electric Sleeve Control Valve Structure

    Dimensions

    Nominal Diameter DN(mm)

    20

    25

    32

    40

    50

    65

    80

    100

    125

    150

    200

    250

    300

    L

    150/250Lb

    181

    184

    200

    222

    254

    276

    298

    352

    410

    451

    550

    640

    880

    300Lb

    194

    197

    200

    235

    267

    292

    317

    368

    425

    473

    640

    760

    910

    600Lb

    206

    200

    210

    251

    286

    311

    337

    394

    440

    508

    670

    810

    950

    H

    150/250Lb

    52.5

    57.5

    75

    75

    85.5

    92.5

    100

    110

    142.5

    158

    170

    195

    230

    300Lb

    52.5

    57.5

    75

    75

    82.5

    92.5

    100

    117.5

    150

    167.5

    187.5

    205

    245

    600Lb

    65

    40

    85

    85

    90

    102.5

    107.5

    125

    172.5

    195

    207.5

    230

    260

    H1

    132

    132

    158

    170

    179

    214

    221

    234

    270

    294

    331

    390

    450

    H2

    PSL

    465

    465

    465

    465

    465

    560

    560

    560

    560

    560

    788

    788

    788

    3810

    373

    373

    495

    495

    495

    700

    700

    700

    725

    725

    725

    725

    725

    D

    177

    177

    177

    177

    177

    182

    182

    182

    182

    182

    218

    218

    218
